BSD4575CG軸承
購買SKF BSD4575CG軸承，及BSD4575CG軸承同系列產品，或者SKF公司其他產品，請聯系SKF進口軸承代理-鼎力晟業，我們提供準時高效的服務。
型號：BSD4575CG
品牌：SKF
內徑：45
外徑：75
厚度：15
系列：角接觸推力球軸承 for screw drives, single direction
【
手機版 BSD4575CG軸承
點擊量
更新日期：2021/12/28
】
電話：020-36026999 傳真：020-36705678 服務熱線：18922176822 郵箱：sales@gzbearing.cn

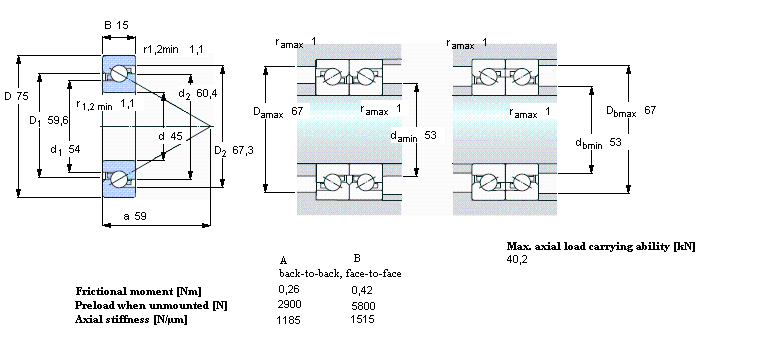

SKF BSD4575CG尺寸圖紙
BSD4575CG軸承基本參數
| 角接觸推力球軸承 for screw drives, single direction | |||||||||||
| 公差, inner rings, outer rings, see also text | |||||||||||
| Preload, see specific bearing, see also text | |||||||||||
| Shaft fits, housing fits | |||||||||||
| 軸和軸承座公差 | |||||||||||
|
|||||||||||
| 主要數據尺寸 | 基本負荷額定值 | 疲勞負荷限值 | 可達到的速度 | 體積 | 型號 | ||||||
| 動態 | 靜態 | 當潤滑與 | SKF | SNFA | |||||||
| 油脂 | 滴油潤滑 | ||||||||||
| d | D | H | C | C0 | Pu | ||||||
|
|
|||||||||||
| mm | kN | kN | r/min | kg | - | ||||||
|
|
|||||||||||
| 45 | 75 | 15 | 32,5 | 98 | 3,65 | 7500 | 9000 | 0,26 | BSD 4575 CG | BS 45/75 7P62U | |
